Powertrain Blockset
Powertrain Blockset provides ready-to-use vehicle models for gasoline, diesel, hybrid, fuel cell, and electric powertrains. It includes components like engines, motors, batteries, transmissions, tires, and controllers.
Use the Virtual Vehicle Composer app to configure and parameterize models. Prebuilt workflows support component resizing, model calibration, shift schedule optimization, and deep learning estimator generation. Models support tradeoff analysis, control tuning, and HIL testing—and are fully open for customization.
Virtual Vehicle Composer
Interactively parameterize, configure, and build virtual vehicles to analyze fuel economy, EV range, energy management, and performance.

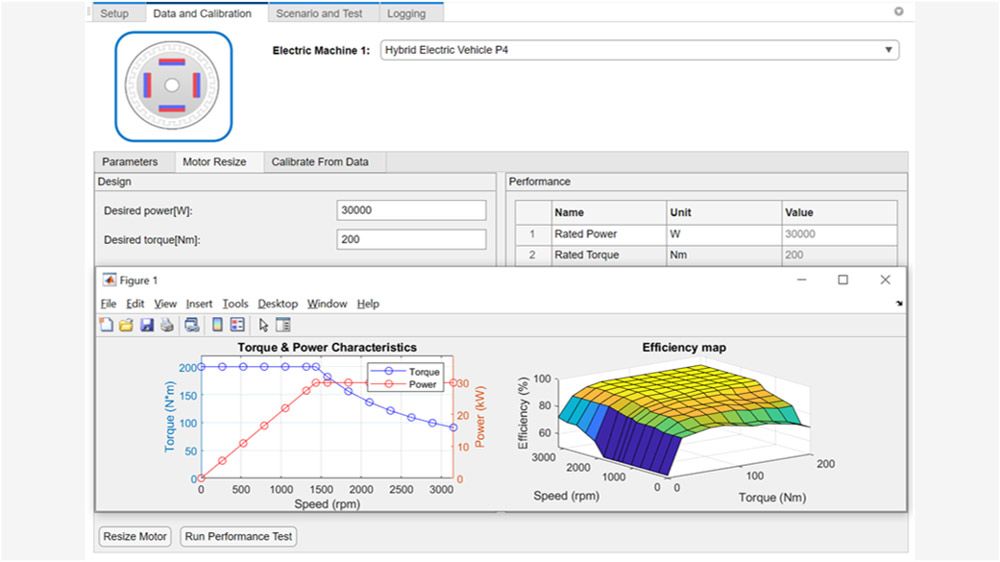

Engine and Motor Resize Workflows
Use predefined workflows in Virtual Vehicle Composer to resize engines and mapped motors by high-level specs like max power. Controllers are auto-recalibrated for the new size.

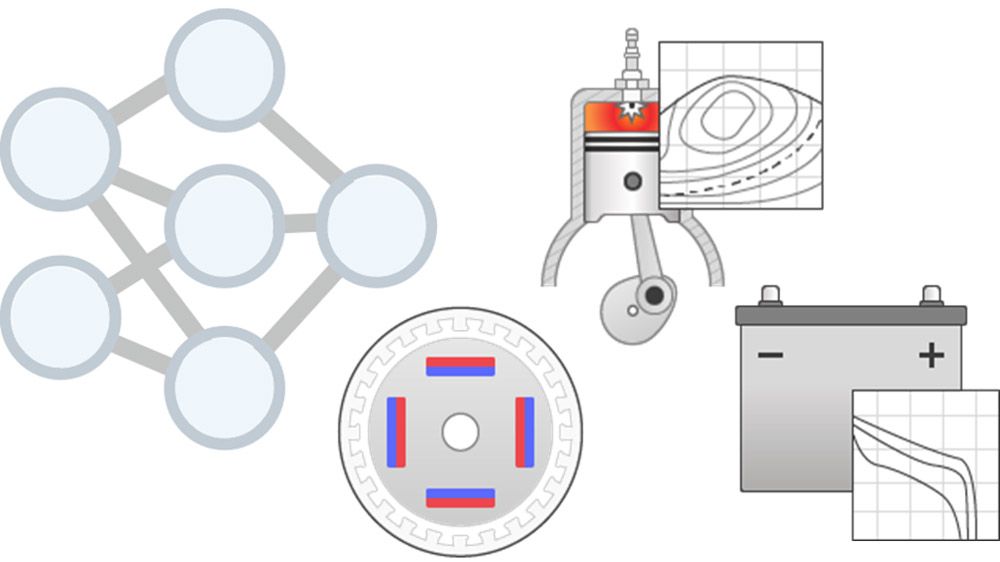

Generate Deep Learning Component Models
Generate reduced-order models (ROMs) with dynamic deep learning for components like engines and motors, supporting HIL testing and control design.
Virtual Calibration
Calibrate controllers and tune parameters for engines, turbochargers, and motors before integrating with your full vehicle model.

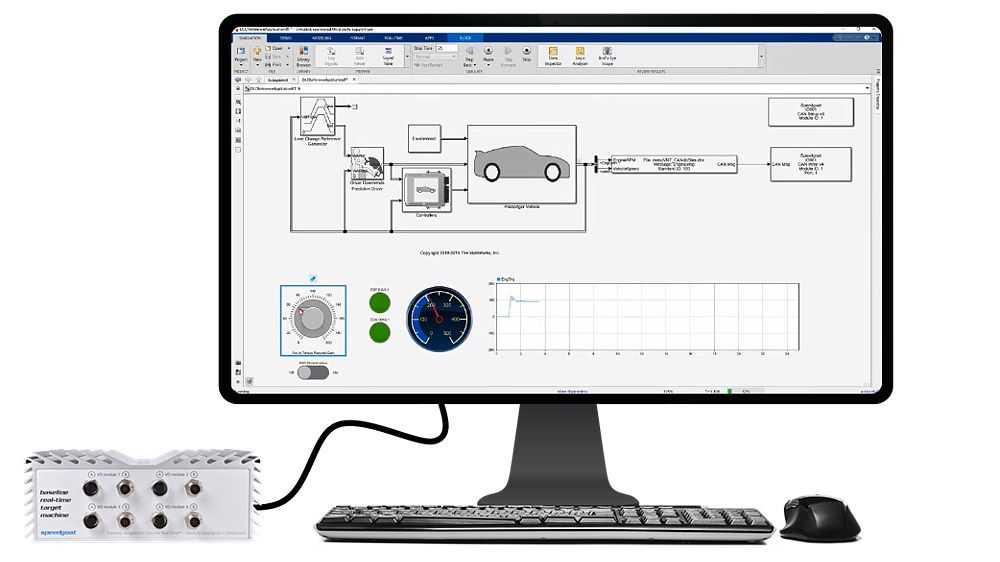

HIL and Cloud Support
Capture key physical effects with real-time execution using Simulink Real-Time. Scale up by deploying to the cloud for large simulation studies.
Simscape Integration
With Simscape, integrate electrical, thermal, and mechanical systems into vehicle models using schematic assembly or prebuilt options in the Virtual Vehicle Composer app.
